Davis-Boyle Complete Set With Blades — Overview

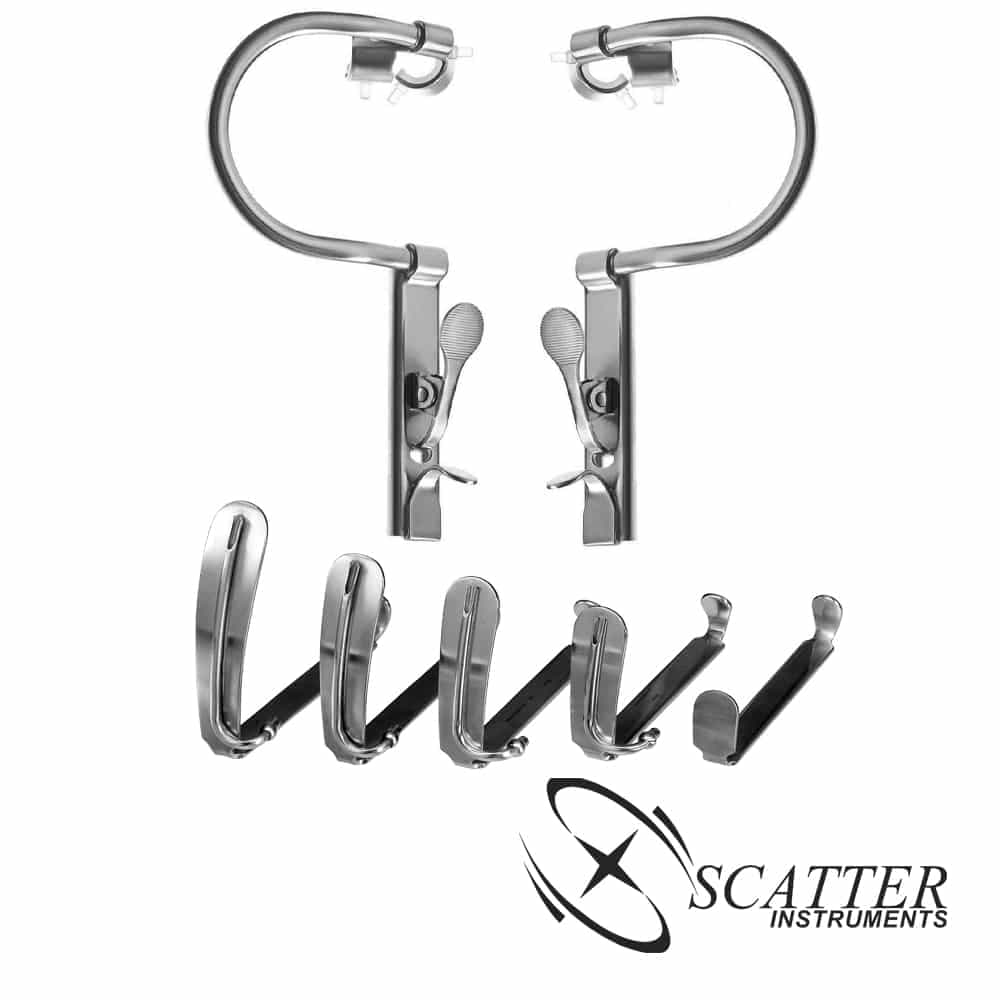

The Davis-Boyle Complete Set (S27-109-01) is a full mouth gag system comprising the left and right Davis-Boyle mouth gag frames along with five interchangeable blades — four with fixed suction tubes (110x28mm, 95x27mm, 80x27mm, 65x26mm) and one without (30x20mm) — giving the surgical team a complete, ready-to-use tonsillectomy and intraoral surgery gag system in a single set.

What a Davis-Boyle Mouth Gag Does

A mouth gag holds the mouth open and the tongue depressed simultaneously, giving the surgeon hands-free, stable access to the oral cavity and oropharynx — standard equipment for tonsillectomy, adenoidectomy, and other transoral procedures. The Davis-Boyle design uses a self-retaining frame with an interchangeable blade that both depresses the tongue and, on four of the five included blades, incorporates a fixed suction channel to clear blood and secretions directly through the blade during the procedure.

Five Blade Sizes

The graduated blade sizes, from 30x20mm up to 110x28mm, let the surgeon match blade size to patient anatomy — smaller blades for pediatric cases, larger blades for adult anatomy — without needing separate complete gag systems for each patient size. The suction-tube blades handle routine fluid management directly through the gag; the smallest, non-suction blade is typically used where the suction feature isn't needed or where minimal bulk is preferred.

Clinical Use

This set is used in tonsillectomy, adenoidectomy, and other transoral maxillofacial and ENT-adjacent procedures requiring stable, hands-free mouth and tongue retraction across a range of patient sizes.

Material and Construction

Manufactured from surgical-grade stainless steel and hand-finished in Sialkot, Pakistan, with the suction-tube blades incorporating a smooth internal channel compatible with standard surgical suction connections.

Sterilization and Care

Fully autoclavable across all frame and blade components. The suction channels in the applicable blades should be flushed and checked for clogging after each use.

Ordering

The Davis-Boyle Complete Set With Blades, SKU S27-109-01, is supplied by Scatter Instruments to hospitals, ENT and maxillofacial surgery centers, and distributors internationally, with bulk pricing and OEM or private-label branding available on request.
